The serial port plugin+library provides interface blocks for serial lines (COM ports / ttys).

To use a serial port, first import the library by opening the 'File' -> 'Import Library' dialog, then navigate to the serial-line-plugin folder (press-and-hold the expecco-home button, select the plugin-folder submenu, select the serial-line-folder), and select the "SerialPort.ets" library for import.

The most useful blocks are "Serial Port - Open", "Serial Port - Close" and the Send/Data blocks.

For a start, see the "Examples" folder in the imported library.

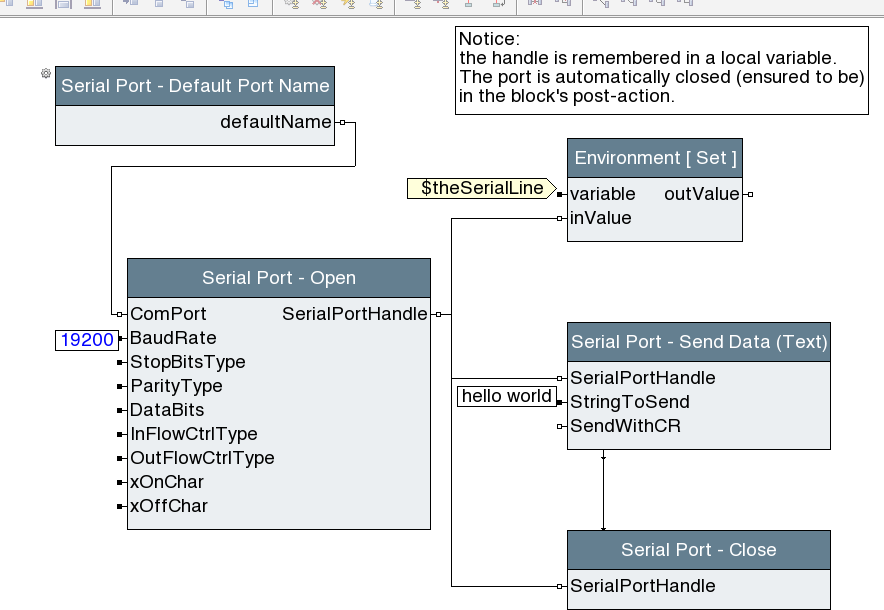

SerialPort Example1.png
