German Version

Where to find the settings for table driven tests

Where to Find

The settings for the table editor are found in the expecco settings dialog under "Look & Feel".

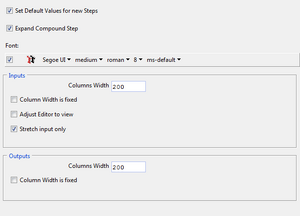

Table Editor

Settings for table driven tests

The settings are applied to the table editor of the table driven block:

  • Set Default Values for new Steps
    If checked the input pins of new steps will be initialized with default values.
  • Expand Compound Step
    Open editor with expanded steps.
  • Font
    The font to display the table in.

Inputs

  • Columns Width
    The width (min) of the column.
  • Columns Width is fixed
    If checked the column width is fixed and will not be adjusted to the window size.
  • Adjust Editor to view
    If checked the editor will be drawn on the column width.
  • Stretch input only
    If checked input pins will be drawn with column width if there is no output pin for the step.

Outputs

  • Columns Width
    The width (min) of the column.
  • Columns Width is fixed
    If checked the column width is fixed and will not be adjusted to the window size.

Look-LogView

The settings are applied to the log view of the table driven block:

  • Expand Compound Step
    Open editor with expanded steps.
  • Font
    The font to display the table in.

Inputs

  • Columns Width
    The width (min) of the column.
  • Columns Width is fixed
    If checked the column width is fixed and will not be adjusted to the window size.
  • Adjust Editor to view
    If checked the editor will be drawn on the column width.
  • Stretch input only
    If checked input pins will be drawn with column width if there is no output pin for the step.

Outputs

  • Columns Width
    The width (min) of the column.
  • Columns Width is fixed
    If checked the column width is fixed and will not be adjusted to the window size.
